Part number: LAS0-K-11EBL/LED color/LED voltage
Diameter: 22mm,25mm
Contact configuration: 1NO 1NC(11) / 2NO2NC(22) / 3NO3NC(33) / 4NO4NC(44)
If you need "slow motion structure",please add M in front of the model number.

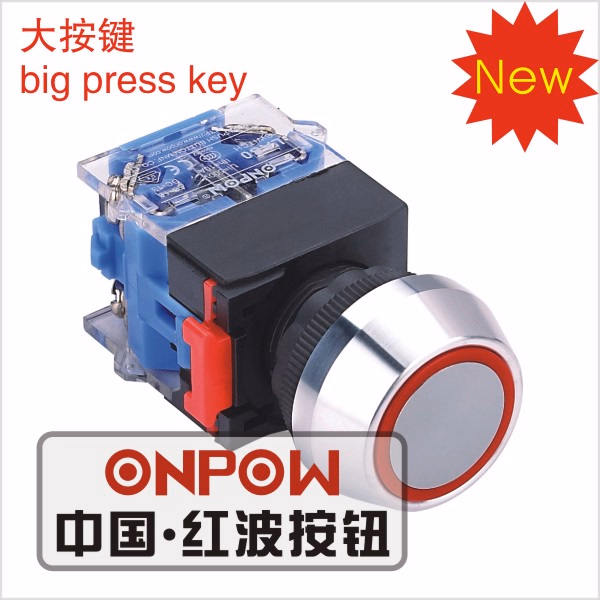

Front shape:Colored Ring Pilot Lamp with Big Press Key
Operation type: Momentary / Latching (Z)
Ring illuminate
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
IP degree: IP40 / IP65(P)
Approval:CE,CCC,VDE,ROHS
Switch Ratings
Lamp ratings
Note:1.the lamp contains a current-limiting resistor inside and doesn't need external connection.
2.The standard is using AC/DC LED lamp,dual-color LED lamp and other voltages can be customized.
Specifications
Mounting hole Dimension
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orang e, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Website: hongbocn.en.made-in-china.com http://hongbocn.en.made-in-china.com
Work time: 8:00-11:30 13:00-17:30(Except Sunday)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/8991cbe98b5753193c4609be7b8291ce.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/07eb82d6ae4aad9caccfbf89e1162932.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/2019cc221ee7a272eca7b41e0dea6fba.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/13a1ae99e6650ed6d0229ded7e00837e.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/ca4841db9eefdcec0a1706bb875b6d2f.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/648e0d73e8e49395f8eaad79a37a59c9.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/74722b99a1ce1a12b36bc21220a71a08.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/bba5ae858516c96977d01b65d3e985b3.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/08c231166430c48b3202fa806482816f.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/43193df8e8805438bbb2e896d40cd6a8.webp)
![Onpow 22mm Colored Ring Pilot Lamp with Big Press Key (LAS0-K-11EBL/R/12V) CCC, CE, VDE](https://img3.grofrom.com/swbuttondasupply/2aecfefe3e35814823b9130b10307870.webp)
Diameter: 22mm,25mm
Contact configuration: 1NO 1NC(11) / 2NO2NC(22) / 3NO3NC(33) / 4NO4NC(44)
If you need "slow motion structure",please add M in front of the model number.
Front shape:Colored Ring Pilot Lamp with Big Press Key
Operation type: Momentary / Latching (Z)
Ring illuminate
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
IP degree: IP40 / IP65(P)
Approval:CE,CCC,VDE,ROHS
Switch Ratings
Rated Insulation Voltage | Ui:500V | |||||
Thermal Current | Lth:10A | |||||
Rated Voltage | 24V | 110V | 220V | 380V | 500V | |
Direct Current | 10A | 2.2A | 1.1A | |||
Alternating current | P.F=0.7 | 10A | 6A | 4A | 2A | |
Lamp ratings
Lamp type | AC LED Lamp | ||||
Rated voltage | AC/DC 6V | AC/DC 12V | AC/DC 110V | AC/DC 220V | AC/DC 380V |
AC/DC 24V | AC 100V | AC 200V | AC 380V | ||
Rated Current | ≤20mA | ||||
Covers color | Red,Green,Yellow,Orange,Blue,White | ||||
Life | About 40,000 hours |
Note:1.the lamp contains a current-limiting resistor inside and doesn't need external connection.
2.The standard is using AC/DC LED lamp,dual-color LED lamp and other voltages can be customized.
Specifications
Operating Temperature | -25ºC~+55ºC(no freezing) | ||
Operating Humidity | 48~85%RH(no condensation) | ||
Contact Material | -sliver -sliver alloy -gold-clad sliver, Cladding thickness is 3μm | ||
Contact Resistance | ≤50mΩ | ||
Insulation Resistance | ≥100mΩ | ||
Dielectric Strength | 3000V,AC 50Hz,1min | ||
Vibration Rasistance | 50Hz,amplitude 1.2mmP-P | ||
Shock Rasistance | ≥10g | ||
Life | Mechnical | Momentary Type | ≥1,000,000times |
Alternate and Selector Type | ≥500,000times | ||
Key-lock and EmergencyType | ≥200,000times | ||
Electrical | ≥50, 000times | ||
Terminal | Thread connection,diameter of welded wire:2*1.5mm max Connecting link:6.3*0.8mm | ||
Operating Force | 800gf-2200gf,according to the quantity of switch units | ||
Operating Travel | A,B,C type:about 5.5mm(pushbutton) | ||
K type:about 3.8mm(pushbutton) |
Category | A | B | C | Remarks |
Normal Type | Φ22.5 or Φ25.5 or Φ30.5 | ≥50 | ≥35 | 1. Unit:mm 2. B and C both are the minimum size. |
Selector Type&Key-lock Type | ≥50 | ≥35 | ||
Mushroom | ≥50 | ≥42 | ||
Big Mushroom | ≥70 | ≥70 |
Mounting hole Dimension
