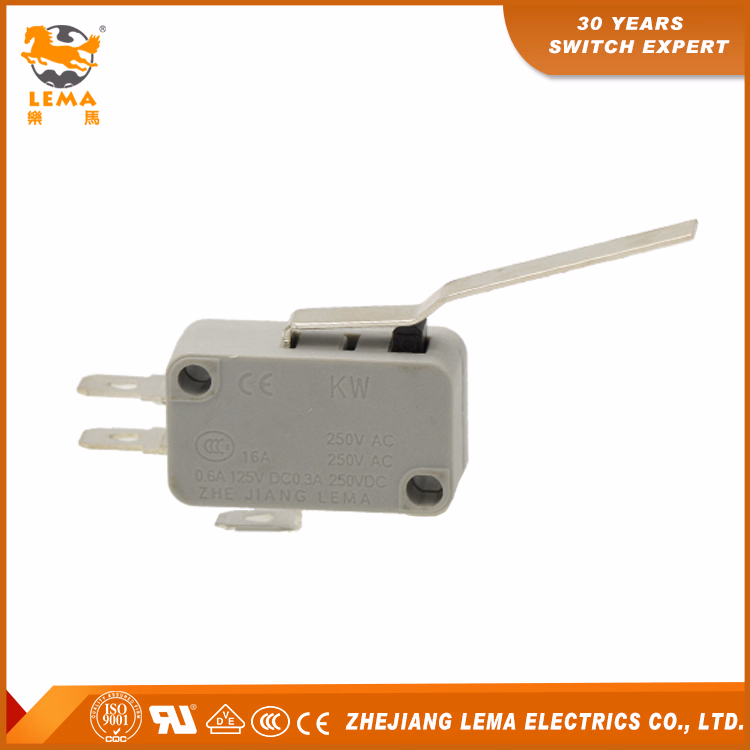

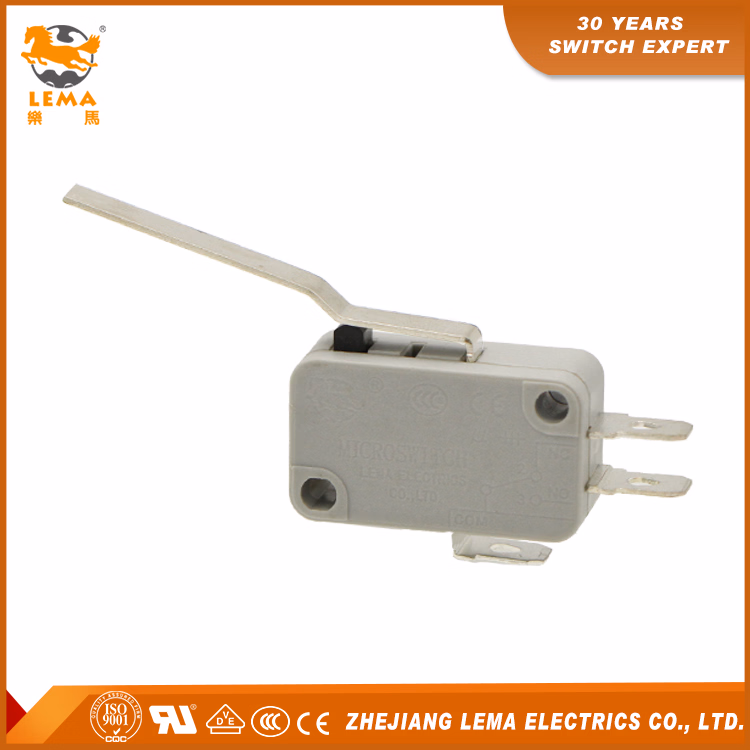

KW7-94 long bent lever sensitive micro switch electrical plastic switch
| Rating | 3A,8A,16A/250VAC,125VAC 0.6A/125VDC 0.3A/250VDC | |
| Initial contact resistance | ≤25mΩ | |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ | |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms,50/60Hz,1min |
| Between current carrying and non-carry metal parts | 1500Vrms,50/60Hz,1min | |
| Between ground and each terminal | 1500Vrms,50/60Hz,1min | |
| Max.shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 | |
| Vibration resistance | 10-55Hz , 1.5mm double amplitude | |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 | |
| Ambient temperature | -25 to +85 | |
| Ambient humidity | 85%RH max | |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min | |
| Operation speed | 0.01mm-1m/s | |
